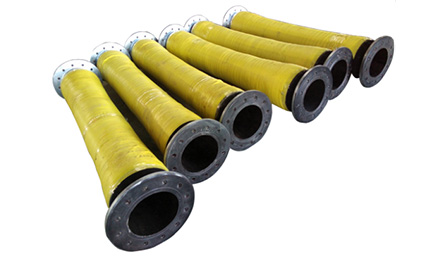

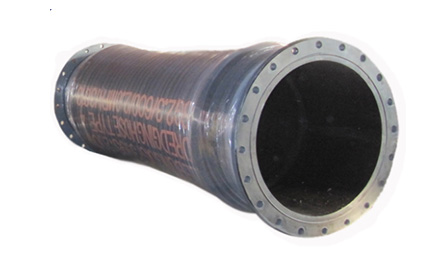

Suction Dredge Hose

Inquire Now Previous Next Product
Product Detail

Application:

The steel flange suction hoses are used with dredgers for silt ,gravels, port, dock, seawater,sand conveyance and discharging flood etc.

Characteristics: Flexible, Anti-wave, Wear-resistance, Weather-resistance, Aging-resistance, seawater resistance

Working temperature: -30 TO 80 ℃

Delivery cycle: As your order(2 pieces per day).

Type of shipping: Tianjin port or Qingdao port.

Safety factor: 3:1

Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.

Technical parameters:

Hose lining: NR, SBR,BR

Reinforcement layer: tire cord with wire spiral

Cover rubber layer: SBR and CR blend


ID

OD

WP

BP

VP

Length

mm

inch

mm

inch

Mpa

bar

Mpa

bar

Kpa

bar

m

152

6"

182

7-1/4"

1.2

12

2.4

24

80

0.8

20

203

8"

233

9-1/5"

1.2

12

2.4

24

80

0.8

20

254

10"

284

11-1/5"

1

10

2

20

80

0.8

10

304

12"

340

13-2/5"

1

10

2

20

80

0.8

6

350

14"

390

15-2/5"

1

10

2

20

80

0.8

6

450

18"

486

19-1/5"

0.7

7

1.5

15

80

0.8

6

550

22"

590

23-3/5"

0.7

7

1.5

15

80

0.8

6

600

24"

640

25-3/5"

0.7

7

1.5

15

80

0.8

6

700

28"

750

29-3/5"

0.7

7

1.5

15

80

0.8

6

800

32"

850

33-1/2"

0.5

5

1

10

80

0.8

6

1000

40"

1050

41-1/2"

0.5

5

1

10

80

0.8

6

1200

48"

1250

49-1/5"

0.5

5

1

10

80

0.8

6

1300

52"

1350

53-1/5"

0.5

5

1

10

80

0.8

6

Remark:We can produce any specification and property according to customers’ requirements
