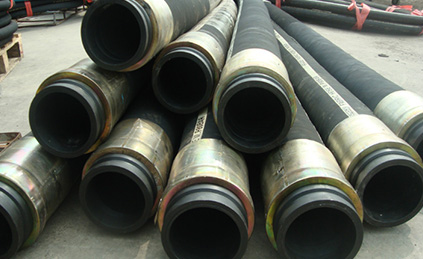

Steel Wire Concrete Pump Hose

Inquire Now Previous Next Product
Product Detail

Structure: steel wire reinforced concrete pump hose is composed of three parts: tube, reinforcement and cover.

Tube: resistant to abrasion synthetic rubber, principally chloroprene rubber.

Reinforcement: multiple layers of high tensile steel wires.

Cover: resistant to abrasion, weather, ozone and corrosion synthetic rubber, mainly chloroprene rubber.

Temperature range: -30°C to +80°C.

Inner diameter: 2" to 6" (51mm to 152mm).

Outside diameter: 68mm to 186mm.

Working pressure: 85 bar.

Burst pressure: 200 bar.

Bend radius: 200mm to 570mm.


Application of steel wire reinforced concrete pump hose:

Steel wire reinforced concrete pump hose is mainly used to transfer highly abrasive materials, such as concrete, cement and plaster in many large projects, such as building, bridge, tunnel, beam and swimming pool.


Hose code

Specification (ID - layers)

ID

OD

Working pressure

Burst pressure

Bend radius

Weight

mm

mm

bar

bar

mm

Kg/m

QC-01

2" - 2

51 ± 0.7

68 ± 1.5

85

200

200

2.8

QC-02

2.5" - 2

64 ± 0.8

85 ± 1.5

85

200

250

4.3

QC-03

3" - 4

76 ± 10

102 ± 1.5

85

200

270

6

QC-04

3.5" - 4

89 ± 1.0

116 ± 1.5

85

200

290

7.5

QC-05

4" - 4

102 ± 1.0

130 ± 2

85

200

300

9.1

QC-06

4.5" - 4

114 ± 1.0

143 ± 2

85

200

320

10.5

QC-07

5" - 4

127 ± 1.0

158 ± 2

85

200

360

12.8

QC-08

6" - 4

152 ± 1.0

186 ± 2

85

200

570

17
