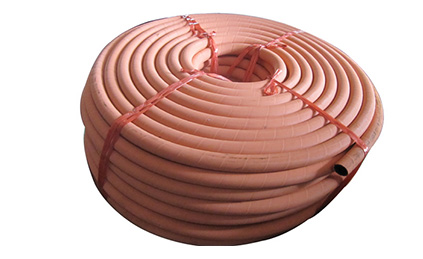

Steam Hose

Inquire Now Previous Next Product
Product Detail

Application: handles steam, saturated water

Characteristics: High temperature, aging, weather resistance

Working temperature: -20 TO 150 ℃

Delivery cycle: As your order(2000 meters per day).

Type of shipping: Tianjin port or Qingdao port.

Safety factor: 1:3

Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.

Technical parameters:

Hose lining: EPDM

Reinforcement layer: tire cord with helix wire

Cover rubber layer: EPDM


ID

OD

WP

BP

Bending Radius

Plies

Weight

Length

mm

inch

mm

inch

Mpa

bar

Mpa

bar

mm

B

kg/m

m

12.5

1/2"

25

1"

1

10

3

30

180

2

0.8

20-50

16

5/8"

29

1-1/4"

1

10

3

30

210

2

1

20-50

19

3/4"

32

1-1/4"

1

10

3

30

240

2

1.1

20-50

22

7/8"

34

1-2/5"

1

10

3

30

280

2

1.2

20-50

25

1"

38

1-1/2"

1

10

3

30

375

2

1.5

20-50

31.5

1-1/4"

46

2"

0.8

8

2.4

24

420

3

1.8

20-50

38

1-1/2"

52

2"

0.8

8

2.4

24

500

3

2

20-50

45

1-3/4"

60

2-3/8"

0.8

8

2.4

24

610

3

2.2

20-50

51

2"

65

2-1/2"

0.8

8

2.4

24

630

3

2.5

20-50

57

2-1/4"

72

2-4/5"

0.8

8

2.4

24

850

3

2.8

20-50

NOTE: We can produce any specification and property according to customers is requirements.
