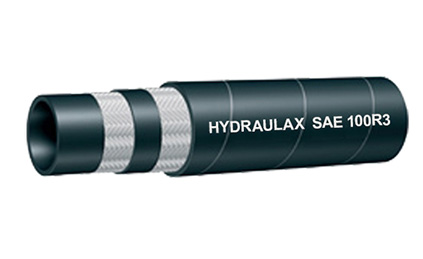

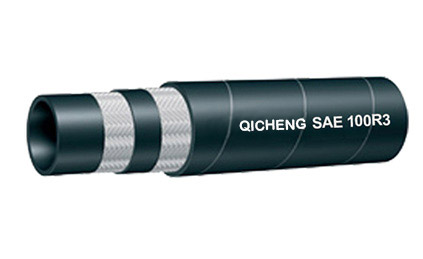

SAE 100R3

SAE 100R3
Inquire Now Previous Next Product
Product Detail

Inner tube:Oil-resistant synthetic rubber

Reinforcement: 2 braid of fiber reinforcement

Outer cover: Abrasion and ozone-resistant synthetic rubber

Temp. range: -40°C to + 100°C

Fiber-reinforced SAE 100R3 General Purpose/Hydraulic Hose is recommended for hydraulic oil line, anti-freeze solutions or water.

Ideal for applications where steel wire is not desired.

Meets or exceeds all SAE 100R3 specifications.


Product NumberHose ID O.D. Max W.P. Min B.P. Min B.R. Weight
mminmmBarpsipsimmkg/m
R3-054.83/16"12.510312475976700.14
R3-066.31/4"14.58612474988760.18
R3-0885/16"17.583120448161020.25
R3-109.53/8"18.778113145241020.27
R3-1312.71/2"23.569100040001270.39
R3-16165/8"26.96087034801400.55
R3-19193/4"31.65275430161520.67
R3-2525.41"37.83956622642030.81
R3-32321 1/4"442637715082540.92
