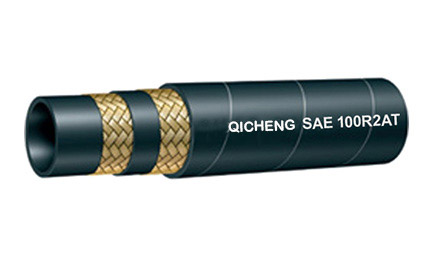

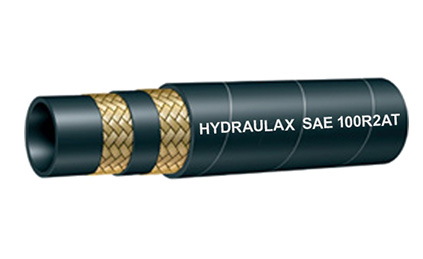

Inner tube:Oil-resistant synthetic rubber
Reinforcement: 2 braid of high-tensile steel wire
Outer cover: Abrasion and ozone-resistant synthetic rubber
Temp. range: -40°C to + 100°C Max.120°C intermittent
SAE 100R2AT Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.
Durable cover idea for mobile hydraulics (farm equipment, logging, construction, and more)
Our least expensive 2-wire hydraulic hose
No skiving required
Can be used with crimp fittings or available SAE 100R2AT field-attachable fittings
Available sizes from 1/4" to 2" ID
Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
mm | in | mm | Mpa | psi | psi | mm | kg/m | |
2SN-06 | 6.3 | 1/4" | 15.7 | 40 | 5801 | 23204 | 100 | 0.34 |
2SN-08 | 8 | 5/16" | 17.3 | 35 | 5076 | 20304 | 115 | 0.39 |
2SN-10 | 10 | 3/8" | 19.7 | 33 | 4786 | 19144 | 130 | 0.49 |
2SN-13 | 12.5 | 1/2" | 23 | 27.5 | 3989 | 15956 | 180 | 0.59 |
2SN-16 | 16 | 5/8" | 26.2 | 25 | 3625 | 14500 | 200 | 0.71 |
2SN-19 | 19 | 3/4" | 30.1 | 21.5 | 3118 | 12472 | 240 | 0.89 |
2SN-25 | 25 | 1" | 38.9 | 16.5 | 2393 | 9430 | 300 | 1.37 |
2SN-32 | 31.5 | 1 1/4" | 49.5 | 12.5 | 1813 | 7252 | 420 | 2.27 |
2SN-38 | 38 | 1 1/2" | 55.9 | 9 | 1305 | 5220 | 500 | 2.44 |
2SN-51 | 51 | 2" | 68.6 | 8 | 1160 | 4640 | 630 | 3 |
