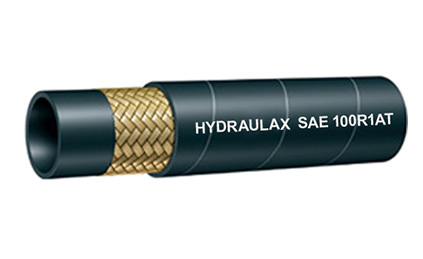

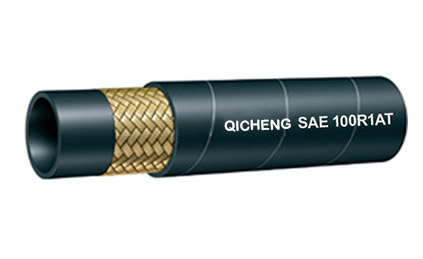

SAE100R1A T/ DIN EN853 1SN

Inquire Now Previous

Next Product

Product Detail

Inner tube:Oil-resistant synthetic rubber

Reinforcement: 1 braid of high-tensile steel wire

Outer cover: Abrasion and ozone-resistant synthetic rubber

Temp. range: -40°C to + 100°C Max.120°C intermittent

SAE 100 R1AT Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.

Durable cover idea for mobile hydraulics (farm equipment, logging, construction, and more)

No skiving required

Can be used with crimp fittings or available SAE 100R1AT field-attachable fittings

Available sizes from 1/4" to 2" ID

Product Number	Hose ID		O.D.	Max W.P.		Min B.P.	Min B.R.	Weight
Product Number	mm	in	mm	Mpa	psi	psi	mm	kg/m
1SN-06	6.3	1/4"	14.1	22.5	3260	13050	100	0.23
1SN-08	8	5/16"	15.7	21.5	3120	12330	115	0.27
1SN-10	10	3/8"	18.1	18	2610	10440	125	0.34
1SN-13	12.5	1/2"	21.4	16	2320	9280	180	0.43
1SN-16	16	5/8"	24.5	13	1890	7540	205	0.51
1SN-19	19	3/4"	28.5	10.5	1520	6090	240	0.66
1SN-25	25	1"	36.6	8.7	1280	5080	300	1
1SN-32	31.5	1 1/4"	44.8	6.3	910	3630	420	1.35
BS1SN-38	38	1 1/2"	52.1	5	720	2900	500	1.56
1SN-51	51	2"	65.5	4	580	2320	630	2.2
