Inner tube:Oil-resistant nylon or thermoplastic core
Reinforcement: High tensile synthetic fiber or kelvar reinforcement
Outer cover: Abrasion-resistant polyurethane cover
Temp. range: -40°C to + 100°C

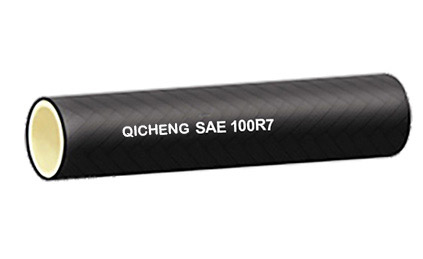

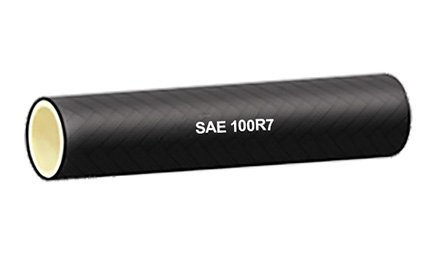

Fiber-reinforced SAE 100R7 Non-Conductive Thermplast Hose is recommended medium pressure hydraulic lines,lubrication,medium pressure gas and solvent.
Ideal for applications where steel wire is not desired.
Meets or exceeds all SAE 100R7 specifications.
| Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
| mm | in | mm | Bar | psi | psi | mm | kg/m | |
| R7-03 | 3.3 | 1/8" | 8.5 | 172 | 2494 | 9976 | 13 | 0.037 |
| R7-05 | 4.8 | 3/16" | 10.8 | 207 | 3002 | 12008 | 22 | 0.068 |
| R7-06 | 6.4 | 1/4" | 13 | 207 | 3002 | 12008 | 33 | 0.085 |
| R7-08 | 7.9 | 5/16" | 14 | 172 | 2494 | 9976 | 46 | 0.103 |
| R7-10 | 9.5 | 3/8" | 15 | 155 | 2248 | 8992 | 51 | 0.141 |
| R7-13 | 12.7 | 1/2" | 16 | 138 | 2001 | 8004 | 76 | 0.21 |
| R7-19 | 19 | 3/4" | 17 | 86 | 1247 | 4988 | 127 | 0.287 |
| R7-25 | 25.4 | 1" | 18 | 69 | 1000 | 4000 | 203 | 0.542 |
