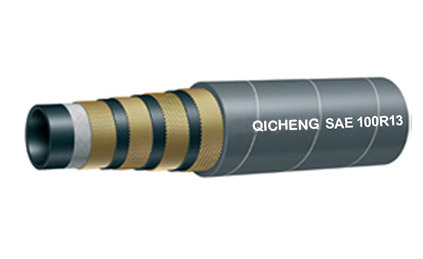

Inner tube:Oil-resistant synthetic rubber
Reinforcement: 4 or 6 spiral layers of high-tensile steel wire
Outer cover: Abrasion and ozone-resistant synthetic rubber
Temp. range: -40°C to + 100°C Max.120°C intermittent
SAE 100 R13 Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.
Idea for high-impulse applications
No skiving required
Can be used with crimp fittings or available SAE 100R13 field-attachable fittings
Available sizes from 3/8" to 2" ID
Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
mm | in | mm | Mpa | psi | psi | mm | kg/m | |
R13-19 | 19 | 3/4" | 33.22 | 35 | 5076 | 20305 | 240 | 1.62 |
R13-25 | 25 | 1" | 39.8 | 35 | 5076 | 20305 | 300 | 2.12 |
R13-32 | 31.5 | 1 1/4" | 51.3 | 35 | 5076 | 20305 | 420 | 4.01 |
R13-38 | 38 | 1 1/2" | 58.8 | 35 | 5076 | 20305 | 500 | 4.99 |
R13-51 | 51 | 2" | 72.7 | 35 | 5076 | 20305 | 630 | 7.33 |
