Product

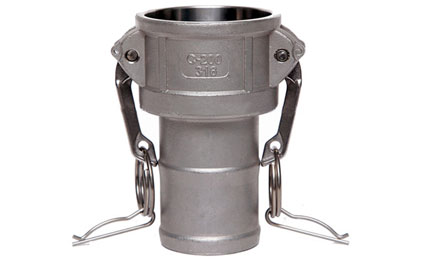

Type C Stainless Steel Camlock Coupling
Standard
Cam&Groove couplings are made in compliance with A-A-59326(old version called MIL-C-27487)specification
Material
Stainless steel AISI316/AISI304 by investment casting
Features
Handles are made of stainless steel AISI 304 asa standard.
Camlock are capable of transporting liquids,solids and gases,except liquid gas and steam.
Coupling with multi-serrated hose shank & collar are available on customer's request.
Gaskets Material
NBR
EPDM
Viton
Silicon
Thread
NPT
BSP(female BSPP & male BSPT)
DIN2999
Working Pressure
| Size (inch) | 1/2" | 3/4"-2" | 2 1/2" | 3" | 4"- 6" |
| Working Pressure(PSI) | 150 PSI | 250 PSI | 225 PSI | 200 PSI | 100 PSI |
