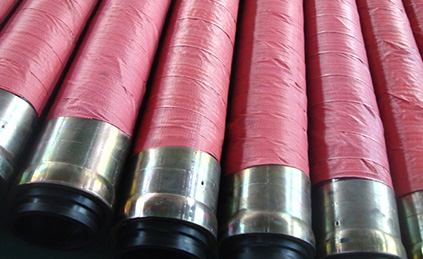

Gunite Hose

Inquire Now Previous Next Product
Product Detail

Structure: gunite hose is composed of three parts: tube, reinforcement and cover.

Tube: resistant to high abrasion synthetic rubber, mainly NR synthetic rubber.

Reinforcement: two layers of high tensile steel wires or polyester cords.

Cover: resistant to weather, ozone, corrosion, abrasion and cutting synthetic rubber, mainly NR synthetic rubber.

Temperature range: -30°C to +80°C.


Steel wire reinforced gunite hose:

Inner diameter: 32mm, 35mm, 38mm.

Outside diameter: 45mm, 48mm, 52mm.

Working pressure: 40 bar.

Max safety factor: 2.5:1.


Fabric reinforced gunite hose:

Inner diameter: 19mm, 25mm, 32mm, 35mm and 38mm.

Outside diameter: 32mm, 38mm, 44.5mm, 47mm, 48mm and 52mm.

Working pressure: 40 bar.

Max safety factor: 2.5:1.


Application of gunite hose:

Gunite hose is widely used in concrete construction industry. It is mainly used in concrete repair, mining reinforcement, tunnel, swimming pool construction, bridge repair, culvert and drainage, ground stabilization, fountain, decorative concrete, grain silo, refractory liners and so on.


Hose code

Hose type

ID

Hose thickness

OD

Cover thickness

Working pressure

Max safety factor

weight

Ends clamps

mm

mm

mm

mm

bar

Kg/m

GH-01

Steel wire reinforced gunite hose

38 ± 0.5

7 ± 0.5

52 ± 0.8

2 ± 0.2

40

2.5:1

1.38 ± 0.1

1 1/2"

GH-02

35 ± 0.5

6.5 ± 0.5

48 ± 0.8

2 ± 0.2

40

2.5:1

1.25 ± 0.1

1 1/2"

GH-03

32 ± 0.5

6.5 ± 0.5

45 ± 0.8

2 ± 0.3

40

2.5:1

1.14 ± 0.1

1 1/4"

GH-04

Fabric reinforced gunite hose

38 ± 0.5

7 ± 0.5

52 ± 0.8

2 ± 0.2

40

2.5:1

1.17 ± 0.1

1 1/2"

GH-05

35 ± 0.5

6.5 ± 0.5

48 ± 0.8

2 ± 0.3

40

2.5:1

1.06 ± 0.1

1 1/2"

GH-06

35 ± 0.5

6 ± 0.5

47 ± 0.8

2 ± 0.3

15

2.5:1

0.90 ± 0.1

1 1/2"

GH-07

32 ± 0.5

6.5 ± 0.5

44.5 ± 0.8

2 ± 0.3

40

2.5:1

1.01 ± 0.1

1 1/4"

GH-08

25 ± 0.5

6.5 ± 0.5

38 ± 0.5

2 ± 0.3

40

2.5:1

0.8 ± 0.1

1" or 1 1/4"

GH-09

19 ± 0.5

6.5 ± 0.5

32 ± 0.5

2 ± 0.3

40

2.5:1

0.7 ± 0.1

1" or 3/4"
