Structure
Tube:Nitrle Rubber (NBR),Black
Reinforcement:High Strength Steel Wire Braid
Cover: CPE
Working Temperature: -40C~+70C
Application of Gasoline Pump Hose:
Suitable for gasoline and diesel fuel, including oxygenated fuels(up to a maximum of 15% oxygenated compounds)gasoline with small amounts of additives etc.

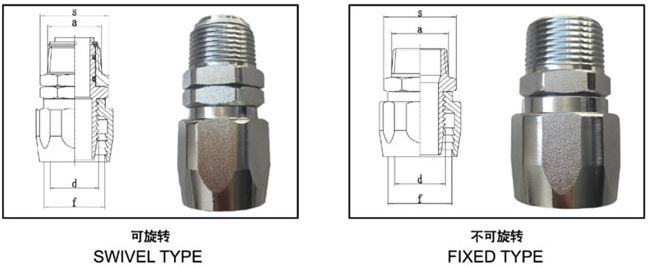

Coupling Type:Swivel and Fixed
Hose Code | Nominal Size | Hose Size | Working Pressure (Max) | Proof Pressure | Bursting Pressure (min.) | Bending Radius (min.) | Weight Approx | |
I.D. | O.D. | |||||||
inch | mm | mm | Psi | Psi | Psi | mm | kg/m | |
QC-G1 | 5/8" | 16 | 27 | 232 | 348 | 696 | 250 | 0.6 |
QC-G2 | 3/4" | 19 | 30 | 232 | 348 | 696 | 240 | 0.7 |
QC-G3 | 7/8" | 22 | 33 | 232 | 348 | 696 | 280 | 0.823 |
QC-G4 | 1" | 25 | 37 | 232 | 348 | 696 | 300 | 0.96 |
