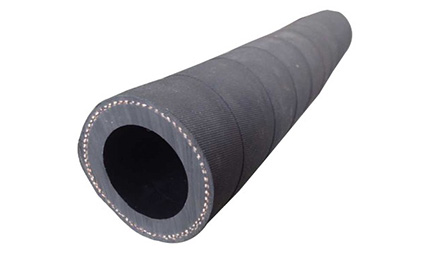

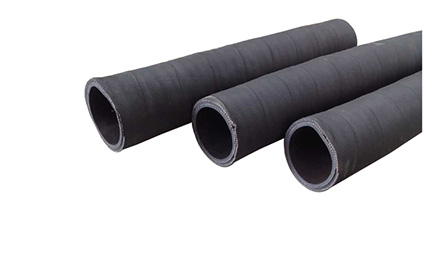

Application: handles castings, steel, stone, sand, cement and other abrasive materials in sandblasting service.
Characteristics: high tensile; wear, weather, ozone and aging resistance
Working temperature: -20 TO 80℃
Delivery cycle: As your order(2000 meters per day).
Type of shipping: Tianjin port or Qingdao port.
Safety factor: 1:3
Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.
Technical parameters:
Hose lining: NR, SBR, BR blend.
Reinforcement layer: tire cord with helix wire.
Cover rubber layer: SBR and BR.
ID | OD | Length | Bend radius | WP | Weight | |||||
in | mm | in | mm | Ft | M | in | mm | Psi | Kg/cm² | Kg/m |
1 | 25.4 | 1.701 | 43.2 | 200 | 60 | 6 | 150 | 200 | 15 | 1.38 |
1-1/4 | 31.8 | 1.953 | 49.6 | 200 | 60 | 8 | 200 | 200 | 15 | 1.6 |
1-1/2 | 38.1 | 2.232 | 56.7 | 200 | 60 | 10 | 250 | 200 | 15 | 1.91 |
2 | 50.8 | 2.772 | 70.4 | 200 | 60 | 12 | 300 | 150 | 10 | 2.6 |
2-1/2 | 63.5 | 3.272 | 83.1 | 200 | 60 | 15 | 375 | 150 | 10 | 3.1 |
3 | 76.2 | 3.811 | 96.8 | 200 | 60 | 20 | 500 | 150 | 10 | 3.95 |
4 | 101.6 | 5.047 | 128.2 | 200 | 60 | 28 | 700 | 150 | 10 | 6.48 |
5 | 127 | 6.091 | 154.7 | 100 | 30 | 40 | 1000 | 150 | 10 | 8.48 |
6 | 152.4 | 7.177 | 182.3 | 100 | 30 | 48 | 1200 | 150 | 10 | 11.07 |
8 | 203.2 | 9.268 | 235.4 | 100 | 30 | 64 | 1600 | 150 | 10 | 16.28 |
10 | 254 | 11.63 | 295.4 | 100 | 30 | 100 | 2500 | 100 | 7 | 26.05 |
12 | 304.8 | 13.866 | 352.2 | 100 | 30 | 120 | 3000 | 100 | 7 | 35.98 |
Remark:We can produce any specification and property according to customers’ requirements |
