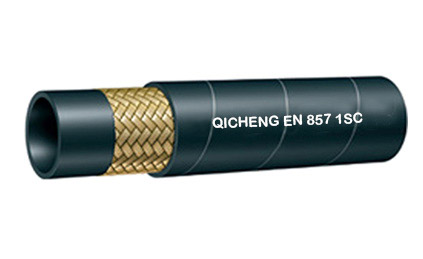

DIN EN857 1SC

Inquire Now Previous

Next Product

Product Detail

Inner tube:Oil-resistant synthetic rubber

Reinforcement: 1 braid of high-tensile steel wire

Outer cover: Abrasion and ozone-resistant synthetic rubber

Temp. range: -40°C to + 100°C Max.120°C intermittent

SAE 100 R1AT Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.

Durable cover idea for mobile hydraulics (farm equipment, logging, construction, and more)

No skiving required

Can be used with crimp fittings or available SAE 100R1AT field-attachable fittings

Available sizes from 1/4" to 2" ID

Product Number	Hose ID		O.D.	Max W.P.		Min B.P.	Min B.R.	Weight
Product Number	mm	in	mm	Mpa	psi	psi	mm	kg/m
1SC-06	6.4	1/4"	13.5	22.5	3265	13221	75	0.18
1SC-08	7.9	5/16"	14.5	21.5	3120	12633	85	0.21
1SC-10	9.5	3/8"	16.9	18	2610	10576	90	0.28
1SC-13	12.7	1/2"	20.4	16	2320	9402	130	0.33
1SC-16	15.9	5/8"	23	13	1885	7639	150	0.41
1SC-19	19	3/4"	26.7	10.5	1525	6170	180	0.52
1SC-25	25.4	1"	34.9	8.8	1275	5142	230	0.78
