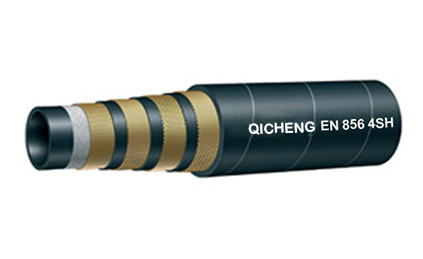

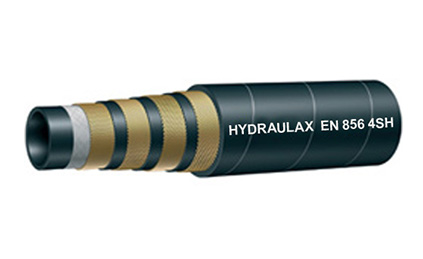

Inner tube:Oil-resistant synthetic rubber
Reinforcement: 4 spiral layers of high-tensile steel wire
Outer cover: Abrasion and ozone-resistant synthetic rubber
Temp. range: -40°C to + 100°C Max.120°C intermittent
DIN EN 856 4SH Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.
Idea for high-impulse applications
No skiving required
Can be used with crimp fittings or available 4SH field-attachable fittings
Available sizes from 3/8" to 2" ID
Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
mm | in | mm | Mpa | psi | psi | mm | kg/m | |
4SH-19 | 19 | 3/4" | 33 | 42 | 6092 | 24366 | 280 | 1.62 |
4SH-25 | 25 | 1" | 39.9 | 38 | 5511 | 22045 | 340 | 2.12 |
4SH-32 | 31.5 | 1 1/4" | 47.1 | 32.5 | 4714 | 18855 | 455 | 2.55 |
4SH-38 | 38 | 1 1/2" | 55.1 | 29 | 4206 | 16824 | 560 | 3.26 |
4SH-51 | 51 | 2" | 69.7 | 25 | 3626 | 14504 | 710 | 4.92 |
